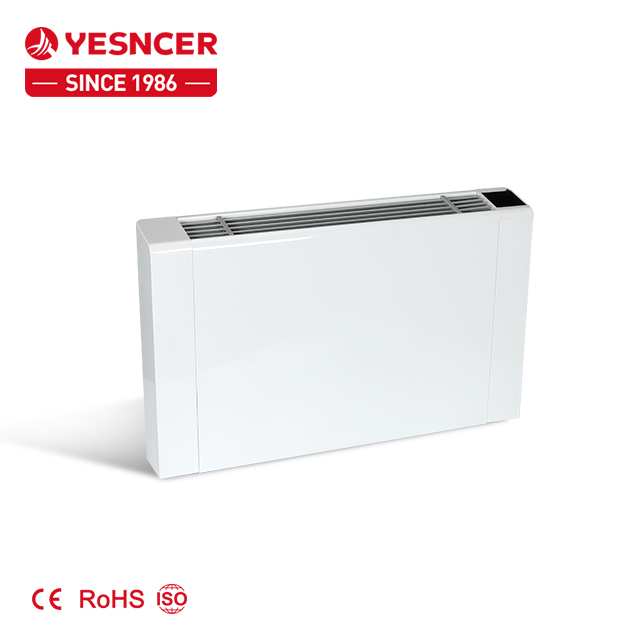

Parametri del fan coil esposto ultrasottile
|
||||||
|
Modello
|
YG-20
|
YG-30
|
||||
|
Intervallo di tensione
|
CA 190-250 V, 50/60 Hz
|
|||||
|
Gamma di rotazione
|
200-2200 n.p
|
|||||
|
Intervallo del volume dell'aria
|
200~700 m/h
|
300~1100m²/
|
||||
|
Gamma di rumore
|
30-45 dB
|
35-50 dB
|
||||
|
Raffreddamento Ca. (kw)(Acqua a 7°C)
|
3950W
|
5900 W
|
||||
|
Riscaldamento ca. (kw)(Acqua a 35°C)
|
2200 W
|
3100W
|
||||
|
Riscaldamento ca. (kw)(Acqua a 45°C)
|
3800W
|
5500W
|
||||
|
Riscaldamento ca. (kw)(Acqua a 60°C)
|
5900 W
|
8850 W
|
||||
|
Peso (kg)
|
Peso netto
|
17,9*9
|
22.8k9
|
|||
|
Peso lordo
|
20,2kg
|
22,8*g
|
||||
|

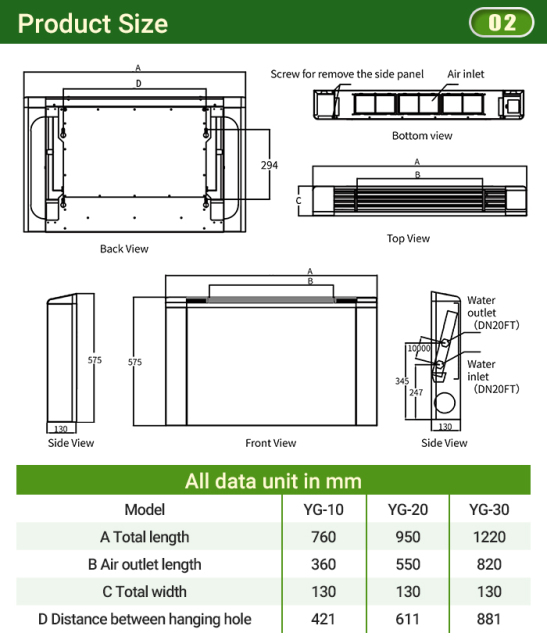

Dimensioni del pacchetto
|
1010*670*185 mm
|
1290*670*185 mm
|
||||
